MacBooks (and now many premium PCs) instead run the system at a voltage close to the battery voltage

The old way (most older laptops)

Traditionally, laptops did this:

• Charger supplies a fixed high voltage (often ~19–20 V)
• That voltage is:
  • Stepped down for the system rails
  • Stepped down again to charge the battery (which is usually ~7–12 V)
• Result:
  • More conversion stages
  • More heat
  • Bigger components
  • Worse efficiency

This worked fine, but it’s electrically… kind of wasteful.

The Apple-style approach (now spreading everywhere)

MacBooks (and now many premium PCs) instead run the system at a voltage close to the battery voltage:

• Battery ≈ 11–12.6 V

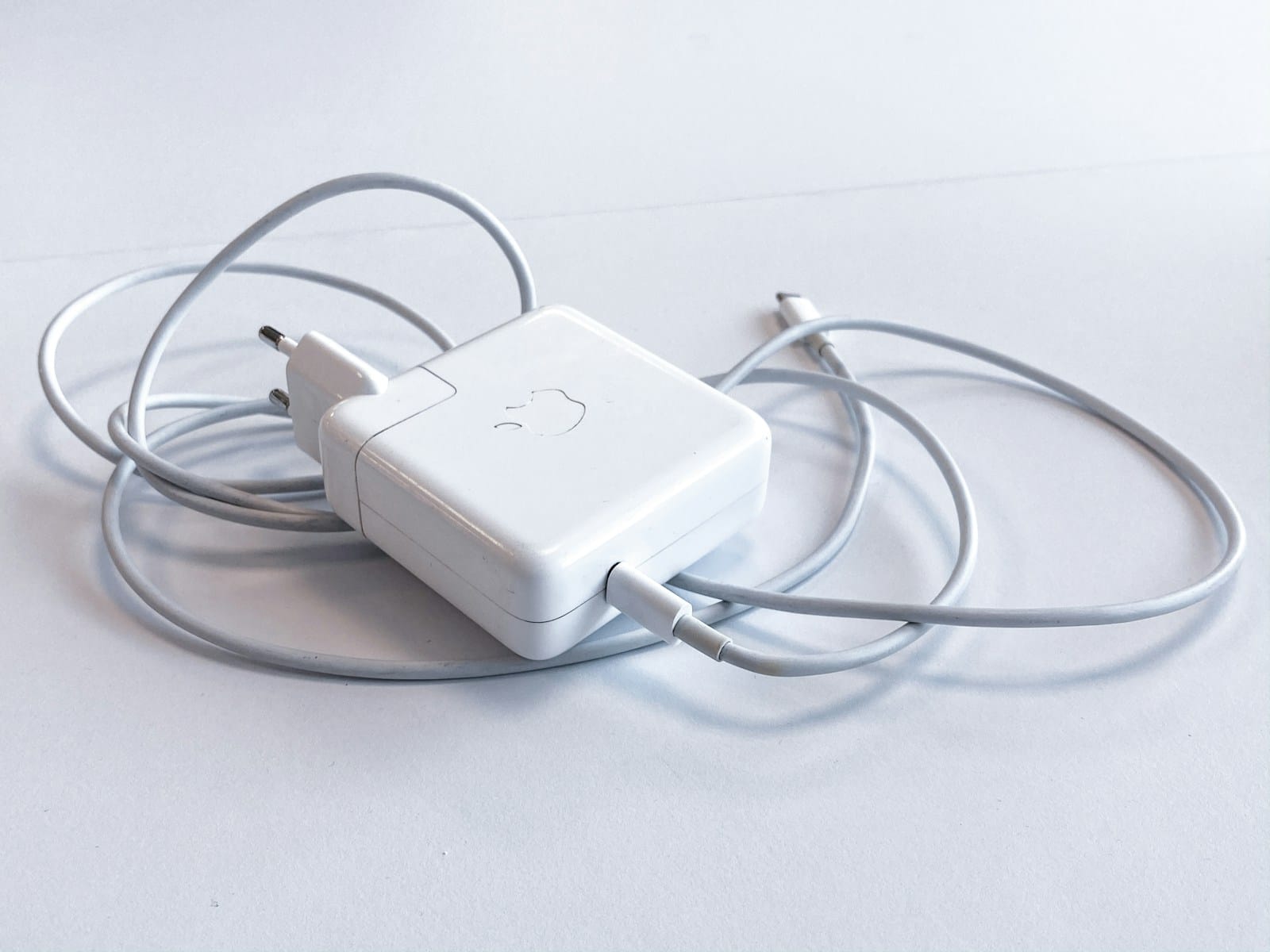

• Charger negotiates a voltage near that range (via USB-C PD or smart adapters)
• A bidirectional buck-boost controller (like ISL9240 / 9240HI):
  • Boosts when charger voltage is lower
  • Bucks when charger voltage is higher
  • Seamlessly switches between battery and adapter

So the system rail (PPBUS_G3H) sits around battery voltage, not 19 V.

Why this is a big deal

1. Much higher efficiency 🔋

Every voltage conversion loses energy as heat.

• Fewer big voltage jumps = less loss
• Battery → system is almost direct
• Charger → system only adjusts slightly

Result:

• Better battery life
• Less wasted power
• Cooler operation

2. Less heat = thinner laptops 🌡️

High voltage → high switching losses → heat → bigger heatsinks.

By staying near battery voltage:

• MOSFETs run cooler
• Inductors can be smaller
• Power stages shrink

This is critical for thin-and-light designs (MacBooks, XPS, ThinkPads, ZenBooks).

3. Seamless power sharing (battery + charger together)

Modern systems don’t just say:

“Battery OR charger”

They do:

“Battery + charger cooperate”

Example:

• Charger can supply 60 W
• CPU/GPU suddenly need 90 W
• Battery assists temporarily
• Charger recharges battery afterward

This is called hybrid power boosting, and it’s much easier when everything sits on one shared rail.

4. USB-C PD made this practical

USB-C PD changed everything:

• Charger voltage is negotiated dynamically
• 5 V / 9 V / 12 V / 15 V / 20 V (and PPS in between)
• Laptop asks for the most efficient voltage for its current state

Apple was early here. Now:

• Intel’s VR13 / VR14 designs expect it
• AMD reference designs expect it
• Qualcomm ARM laptops require it

5. Better battery health ❤️

Charging a battery from a voltage close to its own:

• Reduces charge current stress
• Reduces heat during charging
• Allows finer control of charge profiles

That’s why modern laptops:

• Charge slower at high percentages
• Pause charging under load
• Adapt based on temperature and usage

Why other brands are now copying this

Because the industry was basically forced to:

• Intel & AMD reference platforms now assume buck-boost architectures
• USB-C PD is mandatory on premium devices
• Thin designs leave no room for inefficient power stages
• Energy regulations are getting stricter worldwide

So today you’ll see this in:

• Dell XPS
• Lenovo ThinkPad T/X/P series
• HP EliteBook/ZBook
• ASUS ZenBook
• Framework Laptop
• Even gaming laptops (hybrid boost)

Apple just did it first and aggressively.

Repair-tech perspective (you’ll appreciate this)

This design also explains why MacBooks:

• Measure ~12 V instead of 19 V
• Still run when charger voltage changes
• Can confuse techs expecting “adapter voltage = system voltage”
• Die completely if the buck-boost controller fails (ISL9240 trauma 😅)

It’s elegant—but unforgiving.

Bottom line

Running laptops at battery-adjacent voltage is:

• ✅ More efficient
• ✅ Cooler
• ✅ Smaller
• ✅ Better for batteries
• ✅ Perfect for USB-C

Which is why this isn’t a trend anymore — it’s the new standard.
